Compared to gas-powered Transits, the E‑Transit offers similar overall length and width but has reduced cargo volume due to underfloor batteries, which raise the vehicle height and slightly limit interior space. Payload capacity may be slightly lower or similar, but weight distribution improves handling. Access dimensions for doors and loading remain consistent. To maximize cargo and understand how battery placement affects your work, explore the detailed differences further.
Key Takeaways
- Battery placement under the floor slightly reduces cargo volume compared to gas models but maintains similar overall load dimensions.
- Payload capacity of the E‑Transit remains high, often exceeding gas variants, despite added battery weight.
- Cargo space dimensions, including length, width, and height, are consistent across electric and gas versions, with minor variations due to roof options.
- The flat underbody design improves payload capacity and cargo floor usability by eliminating a transmission tunnel.
- Overall vehicle height increases with roof options and battery placement, but cargo dimensions remain optimized for various configurations.
Overall Length and Width Comparisons
When comparing the overall length and width of the Ford E-Transit to other vehicles, you’ll find that its dimensions are quite similar to those of the gas-powered Transit van. The E-Transit’s length varies slightly by model, but it generally matches the gas Transit, with only minor differences of a few centimeters. It’s typically longer than the F-150 pickup truck, which has a shorter bed length. Width-wise, the E-Transit measures about 2010mm (79 inches), closely matching the gas Transit. The F-150 and Lightning models are slightly wider at around 2030mm (79.9 inches), supporting their utility and off-road capabilities. Overall, the electric version’s dimensions are designed to fit seamlessly into existing cargo operations, garages, and urban delivery routes, with minimal variation from the gas counterparts. Notably, these dimensions are influenced by family dynamics and the vehicle’s purpose, ensuring versatility and practicality in various settings. Additionally, vehicle dimensions are critical for compatibility with storage spaces and transportation infrastructure, facilitating easier integration into various logistical workflows. The consistent sizing also helps manufacturers optimize vehicle design for efficiency and storage solutions.
Cargo Loadspace Dimensions and Configurations
Your E-Transit offers flexible cargo loadspace dimensions that match many gas models, with lengths up to about 4,256 mm and volumes reaching 15.1 m³. The interior height varies based on roof options and remains comparable to gas versions, while cargo width stays consistent at around 1,784 mm. These configurations allow you to optimize space for different loads without sacrificing versatility or capacity. Additionally, the E-Transit is available in multiple variants, including chassis cab and double-cab-in-van options, providing further adaptability for various professional needs designed to meet heavy usage demands. The customizable configurations make it suitable for a wide range of specialized applications in commercial settings. Many of these configurations also benefit from effective cargo management, ensuring your loads are secure and well-organized during transit, which is essential for safe and reliable operation and meeting safety standards.
Cargo Space Measurements
The cargo space measurements of the Ford E-Transit closely match those of its gas-powered counterparts, ensuring consistent load capacities across models. Loadspace length varies with model, from 3,083 mm in L2 to 4,256 mm in L4, with load-through configurations extending length further. Height depends on roof type, ranging from 1,786 mm to over 2,025 mm, similar across electric and gas models. Width between wheelarches stays at about 1,392 mm, with overall width around 2,474 mm. Load volume ranges from approximately 9.5 m³ to 15.1 m³, depending on size and roof height. Battery placement doesn’t impact cargo dimensions, maintaining consistency. Here’s a summary:
| Dimension | Electric E-Transit | Gas Transit | Similarities |
|---|---|---|---|
| Load Length | 3,083 mm–4,256 mm | Same or slightly longer | Comparable cargo space |
| Load Height | 1,786 mm–2,025 mm | Similar | Roof-height variations |
| Load Width | About 1,392 mm | Same | Wheel arch clearance |
Additionally, the consistent cargo dimensions demonstrate how vehicle architecture supports both electric and traditional models without sacrificing space. Understanding these measurements can help in maximizing cargo efficiency, which is essential for various transportation needs and operational planning.

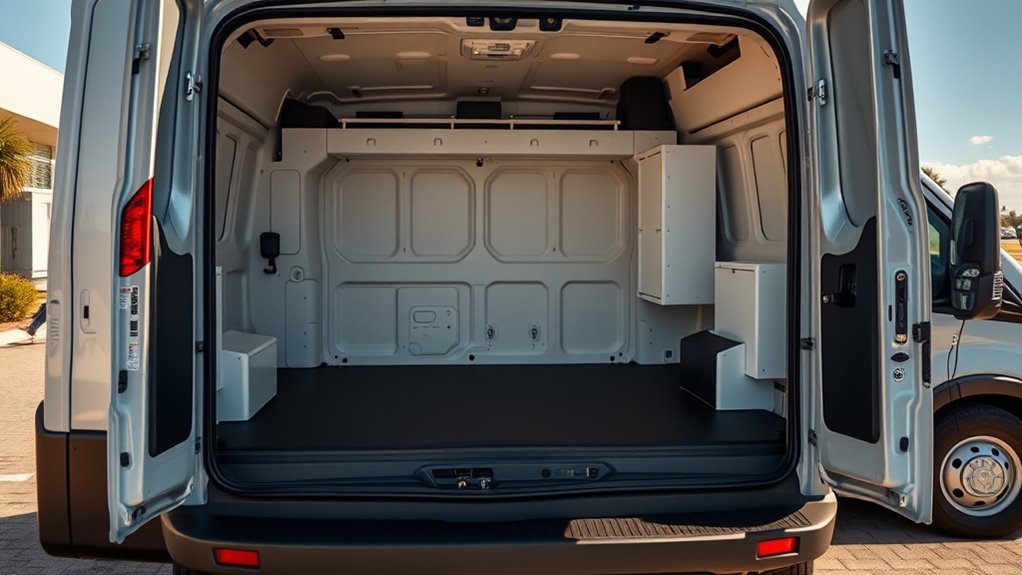

Configuration Versatility
Thanks to its multiple roof height and wheelbase options, the Ford E-Transit offers a highly versatile cargo loadspace that can be tailored to various operational needs. With low, medium, and high roof options, you can select the ideal vertical clearance for your cargo. The three wheelbase lengths—regular, long, and long-EL—allow for different cargo lengths, creating multiple configurations to maximize volume and fit. The combination of roof height and wheelbase lets you optimize space for bulky or elongated items. Additionally, cutaway and chassis cab models provide flexible platforms for custom builds or equipment installations. This versatility guarantees your fleet can adapt to changing demands, whether you need maximum cargo capacity or specialized setups for your business. Furthermore, understanding the configuration versatility of the E-Transit helps in selecting the right model for your specific operational requirements. Incorporating interior customization options can further enhance the vehicle’s adaptability for various industries and tasks, especially when considering the legacy of adaptable commercial vehicles that have historically supported diverse business needs.
Cargo Volume and Maximum Payload Capacity
How does the cargo capacity of the E-Transit compare to traditional gas-powered vans? The E-Transit offers around 311.9 cubic feet of cargo space, which aligns with low to medium roof gas models but is slightly less than high roof extended versions that reach up to 487 cubic feet. Its cargo area length behind the first row is about 143.7 inches, providing ample room for various cargo types. Battery placement and layout differences slightly reduce usable volume compared to gas vans, but overall, the E-Transit remains versatile. Its maximum payload capacity of 3,249 pounds is competitive, often surpassing similar gas models like the Transit 350. While battery weight impacts payload, electric drivetrain efficiencies help maintain high capacity, making the E-Transit a practical electric alternative for commercial use. Additionally, understanding the refrigeration cycle principles can aid in optimizing the performance of electric climate control systems in such vehicles. The battery placement also influences the weight distribution and handling characteristics of the van, which is important for safe operation. Moreover, advancements in electric vehicle battery technology continue to improve payload and range capabilities, ensuring the E-Transit stays relevant in the evolving commercial vehicle market.
Vehicle Height and Ground Clearance Differences
Your E-Transit’s height varies depending on roof type, with taller options adding about 4 inches compared to standard models. Battery placement lowers ground clearance slightly, which can influence off-road ability and loading ease. These structural differences impact your vehicle’s clearance and accessibility, especially in tight or low-clearance spaces. Monitoring signs of spoilage in your cargo, such as discoloration or off-smell, is essential for maintaining quality and safety. Additionally, understanding vehicle specifications helps optimize your cargo management and vehicle performance. Being aware of emergency preparedness essentials can further ensure your safety during unexpected situations involving your vehicle.
Height Variations by Roof Type
The height variations among the Ford E-Transit roof options primarily influence the overall vehicle height, while ground clearance remains consistent across models. Taller roofs add to the exterior height, with the High Extended reaching about 109.4 inches. These changes affect garage fit and clearance needs but don’t alter ground clearance, which stays uniform. The roof styles mainly impact interior headroom and cargo volume. Structural reinforcements ensure rigidity despite increased panel height. Here’s a quick comparison:
| Roof Type | Approximate Vehicle Height | Cargo Volume | Payload Capacity |
|---|---|---|---|
| Low Roof | Less than 109.4 in | ~278 cu. ft | ~3,249 lbs |
| Medium Roof | Slightly taller | ~357 cu. ft | Slightly less |
| High Roof | ~109.4 in | ~404 cu. ft | Lower max payload |
| High Extended | Similar to High, longer | ~487 cu. ft | Reduced payload |
Additionally, the roof structure is designed to support various roof styles without compromising the vehicle’s overall strength and safety standards. Moreover, understanding the vehicle height can help businesses optimize their loading and storage solutions. Recognizing payload capacity is crucial for planning cargo loads and ensuring safety compliance. It is also essential to consider the structural reinforcements that maintain vehicle integrity despite height modifications, ensuring durability and safety.
Ground Clearance Adjustments
Despite sharing similar overall vehicle heights, the Ford E-Transit’s ground clearance is particularly lower than gas-powered Transit vans, mainly because of battery placement beneath the chassis. The E-Transit’s unladen ground clearance measures around 118 mm (5 inches), compared to approximately 140 mm in gas models. This reduction results from the battery’s underfloor packaging, which lowers the load floor and vehicle underside. While the overall height remains consistent across variants, the lowered ground clearance may impact rough terrain capability slightly. Suspension tuning has been adjusted to accommodate the battery weight and altered center of gravity. Despite these changes, the load floor height remains around 735 mm, making cargo handling easier, though potential scraping risks on uneven surfaces increase. The design maintains cargo access and vehicle usability without compromising payload capacity. Additionally, efficient payment solutions can help fleet operators optimize maintenance and operational costs related to vehicle modifications.
Impact of Battery Placement
Battery placement underneath the Ford E-Transit directly influences its overall vehicle height and ground clearance. By mounting the large high-voltage battery pack under the cargo floor, the van’s height increases compared to gas models. This placement requires the chassis to accommodate the battery stack, affecting vertical packaging. You’ll notice the sill loading height is slightly lower—around 608mm to 692mm—making loading easier despite the taller vehicle. The underfloor battery design maintains cargo length and width, preserving usable space. Keep in mind, the battery’s placement:
- Raises overall vehicle height, impacting access and garage fitment
- Lowers the center of gravity, which can improve handling
- Adds structural complexity, influencing chassis design and safety features

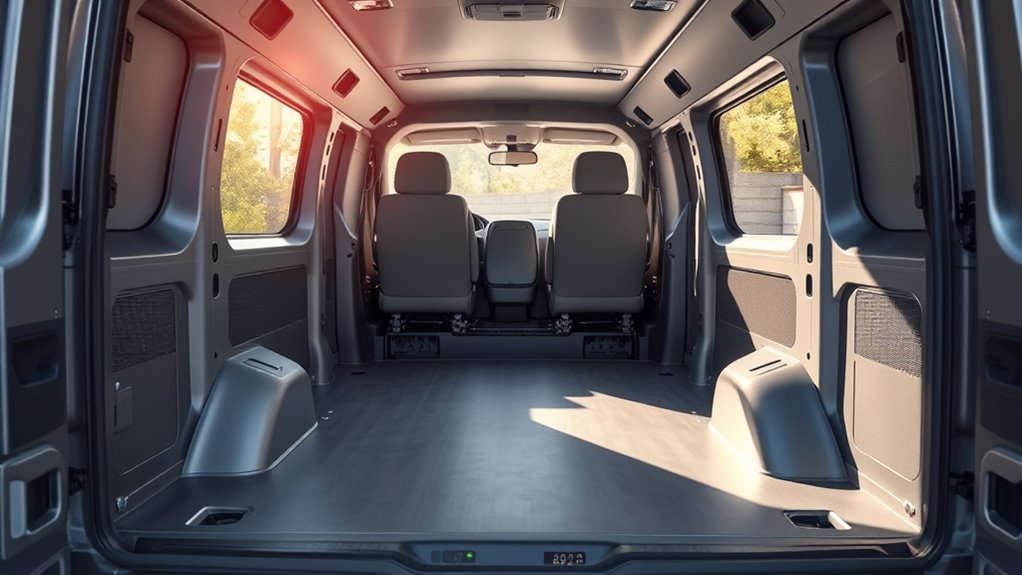

Battery Placement and Its Effect on Interior Space
Placing batteries within the vehicle’s floor offers significant advantages for interior space utilization. This setup creates a flat, low center of gravity, making the interior feel more spacious compared to traditional gas vehicles. Unlike internal combustion engine layouts, electric batteries eliminate bulky engine compartments, freeing up front and rear areas. When integrated under the passenger cabin, batteries reduce intrusion into cargo and passenger zones, enhancing usable volume. While floor-mounted batteries may slightly raise the floor height, they typically don’t impact headroom or legroom if designed properly. However, larger battery packs or rear placements can limit rear cargo space if not carefully integrated, affecting payload capacity. Battery placement also influences vehicle stability and safety, which must be considered in interior design. Overall, strategic battery placement helps maximize interior space without compromising vehicle safety or structural integrity.
Drivetrain Layout and Underbody Packaging
The electric drivetrain in the E-Transit eliminates the need for a transmission tunnel, creating a flat underbody that maximizes cargo space. With the motor and batteries placed beneath the floor, you benefit from improved weight distribution and a lower center of gravity, enhancing stability. This layout also simplifies maintenance and allows for more versatile underbody design compared to traditional gas vans. Additionally, the absence of a traditional engine compartment reduces overall vehicle weight, further increasing payload capacity.
Battery Placement and Space
Electric drivetrain design fundamentally alters how space is allocated in the E-Transit compared to its gas counterpart. You’ll notice the large, underbody high-voltage battery mounted behind the rear axle, which frees up front space by removing the engine bay. Unlike the gas model’s battery inside the cabin, the E-Transit’s battery requires crash protection integrated into chassis rails, adding structure but limiting chassis flexibility. This placement impacts overall cargo height and width, as the battery encases the underbody with reinforced aluminum, adding width and waterproofing needs. The battery’s position also necessitates careful routing of high-voltage cables through protected pathways to ensure safety. – Underbody battery reduces cargo floor height but boosts length and width. – No transmission tunnel creates a flat cargo floor. – Heavy-duty chassis rails support battery weight and safety.
Underbody Design Advantages
Without the complexity of a traditional transmission and exhaust system, the drivetrain layout in the E-Transit simplifies underbody design, freeing up space for cargo and aerodynamics. The absence of a driveshaft creates a flat, uniform underbody, lowering vehicle height and boosting stability. Placing the electric motor near the axle optimizes torque and reduces mechanical losses. Integrating power electronics within the underbody “shrink-wrap” packaging maximizes cargo volume without expanding the vehicle footprint. This streamlined layout cuts component weight and complexity, enhancing efficiency and reducing maintenance needs.
| Benefit | Explanation |
|---|---|
| Cargo Space Optimization | Flat design allows more room for payload without size increases |
| Aerodynamic Efficiency | Smooth underbody reduces drag, improving range |
| Structural Stiffness | Battery and reinforced panels boost rigidity without added weight |
| Vehicle Stability | Lower profile and uniform surface enhance handling |
Towing Capacity and Limitations
Are you wondering how the towing capacities of the Ford E-Transit compare to those of the traditional gas-powered Transit? The differences are significant. The 2025 gas Transit can tow up to 6,900 pounds, thanks to its turbocharged V6 EcoBoost engine, while the U.S. E-Transit isn’t recommended for towing and lacks official ratings. European models claim about 4,409 pounds, but that doesn’t apply here.
- Gas Transit supports trailers between 3,400 and 7,500 pounds.
- Gas models have GVWR exceeding 10,800 pounds, boosting towing potential.
- E-Transit’s lower GVWR and payload limit towing capacity to negligible levels.
The gas engine’s torque, transmission, and cooling systems are designed for towing, unlike the electric motor’s limitations. Ford’s towing packages for gas models further enhance towing capabilities, which are absent in U.S. E-Transit versions. Additionally, the electric powertrain’s design limits the E-Transit’s towing capacity, making it unsuitable for heavy-duty hauling tasks.
Door and Access Dimensions for Loading and Unloading
Accessing the cargo area of the Ford E-Transit is designed to be straightforward, with dimensions that support efficient loading and unloading. The side cargo doors feature openings between 49.6 to 63 inches in height and a consistent width of about 51.2 inches, with a step height around 15.5 to 17.1 inches for easy entry. Sliding doors improve access in tight spaces, while rear doors offer widths up to 59.8 inches and heights up to 72.3 inches, suitable for larger cargo. The load floor sits roughly 28.5 inches from the ground, matching gas models for ergonomic loading. Here’s a breakdown:
| Access Feature | Dimension Range |
|---|---|
| Side door height | 49.6–63 inches |
| Rear door width | 55.1–59.8 inches |
| Load floor height | ~28.7 inches |
The dimensions are optimized to facilitate efficient loading, ensuring that various cargo types can be easily accommodated.
Impact of Electric Weight on Vehicle Handling and Load Distribution
The weight of the battery pack in the Ford E-Transit considerably influences vehicle handling and load distribution. This added mass lowers the center of gravity, improving stability and traction, especially during cornering. However, it also shifts weight to the chassis, impacting suspension tuning and ride comfort. You need to be mindful of these factors:
- The increased weight reduces payload capacity, requiring careful load management.
- Battery placement under the chassis enhances handling but limits cargo vertical stacking.
- Altered weight distribution demands balanced loading to maintain safety and control.
While the low center of gravity benefits handling, the heavier overall mass affects braking distances and range, especially when fully loaded. Understanding these dynamics helps optimize your vehicle’s performance and safety on the road.
Practical Implications for Fleet and Business Usage
Battery weight in the Ford E-Transit influences both payload capacity and cargo space, affecting how you plan and manage your fleet operations. You’ll need to account for slightly reduced payloads and charging schedules. The electric drivetrain frees up interior space, making cargo handling more straightforward, but upfitting requires awareness of battery placement and cooling systems. Consider this table for key differences:
| Aspect | Gas Transit | E-Transit |
|---|---|---|
| Payload | Slightly higher | Slightly lower, depending on configuration |
| Cargo Space | Standard | Slightly increased or similar, optimized for batteries |
| Refueling | Fast, widespread stations | Longer charging, scheduled overnight |
Balancing these factors helps optimize routes, reduce costs, and ensure smooth fleet management with electric vehicles.
Frequently Asked Questions
How Does Battery Weight Affect Cargo Capacity in the E-Transit?
Battery weight slightly reduces your E-Transit’s payload capacity compared to gas models because it adds extra mass. While the cargo volume stays similar thanks to underfloor placement, the heavier batteries mean you can carry a bit less weight overall. However, larger battery options provide longer range and faster charging, so you might need to plan your loads and routes accordingly to maximize your vehicle’s efficiency and performance.
Are There Any Changes in Door Operation or Opening Angles With the Electric Version?
Think of the doors on the E-Transit as steadfast gatekeepers—unchanged in their swing and size. You won’t notice any difference in their operation or opening angles compared to gas models. The rear doors swing fully open to 180 degrees, and the sliding door remains smooth, just like before. The electric drivetrain’s packaging doesn’t interfere, so you’ll enjoy the same accessibility and ease of use, with added security features for peace of mind.
Does the Electric Drivetrain Influence the Vehicle’s Turning Radius or Maneuverability?
The electric drivetrain doesn’t inherently change your vehicle’s turning radius or maneuverability. Instead, factors like wheelbase length and steering system design play a bigger role. With smaller motors, EVs can sometimes have more flexible chassis layouts, potentially allowing tighter turns. Features like rear-wheel steering or shorter wheelbases improve maneuverability, but these are design choices rather than direct results of having an electric drivetrain. So, your EV may handle just as well, or better, depending on design.
How Does the Placement of the Battery Impact Underbody Clearance and Ground Clearance?
You’ll notice that the battery placement under the vehicle lowers the ground clearance compared to gas models. Since the batteries hang off the chassis rails, they take up space normally used for higher components, reducing underbody height. While this helps optimize vehicle design, it means you need to be mindful of uneven surfaces or obstacles. The design balances battery protection with maintaining as much clearance as possible for practical driving.
Are There Modifications Needed for Existing Cargo Accessories or Partitions With the E-Transit?
You’ll likely need some modifications for your existing cargo accessories or partitions. The E-Transit’s floor height is about 28.9 inches, slightly higher than gas models, which can impact install compatibility. Additionally, electric battery placement under the floor might restrict certain mounting points. While most cargo barriers and shelving remain compatible, you should verify dimensions and anchor points, especially for partitions and overhead racks, to guarantee a secure fit with the new layout.
Conclusion
When choosing between e‑transit and gas models, understanding their dimension differences helps you optimize cargo space and handling. Did you know that electric versions often have a slightly lower payload capacity—around 10-15% less—due to battery weight? Keep this in mind for your fleet needs. By considering these changes, you can make smarter decisions, ensuring your vehicles meet your cargo demands without compromising performance or efficiency.
